Product details

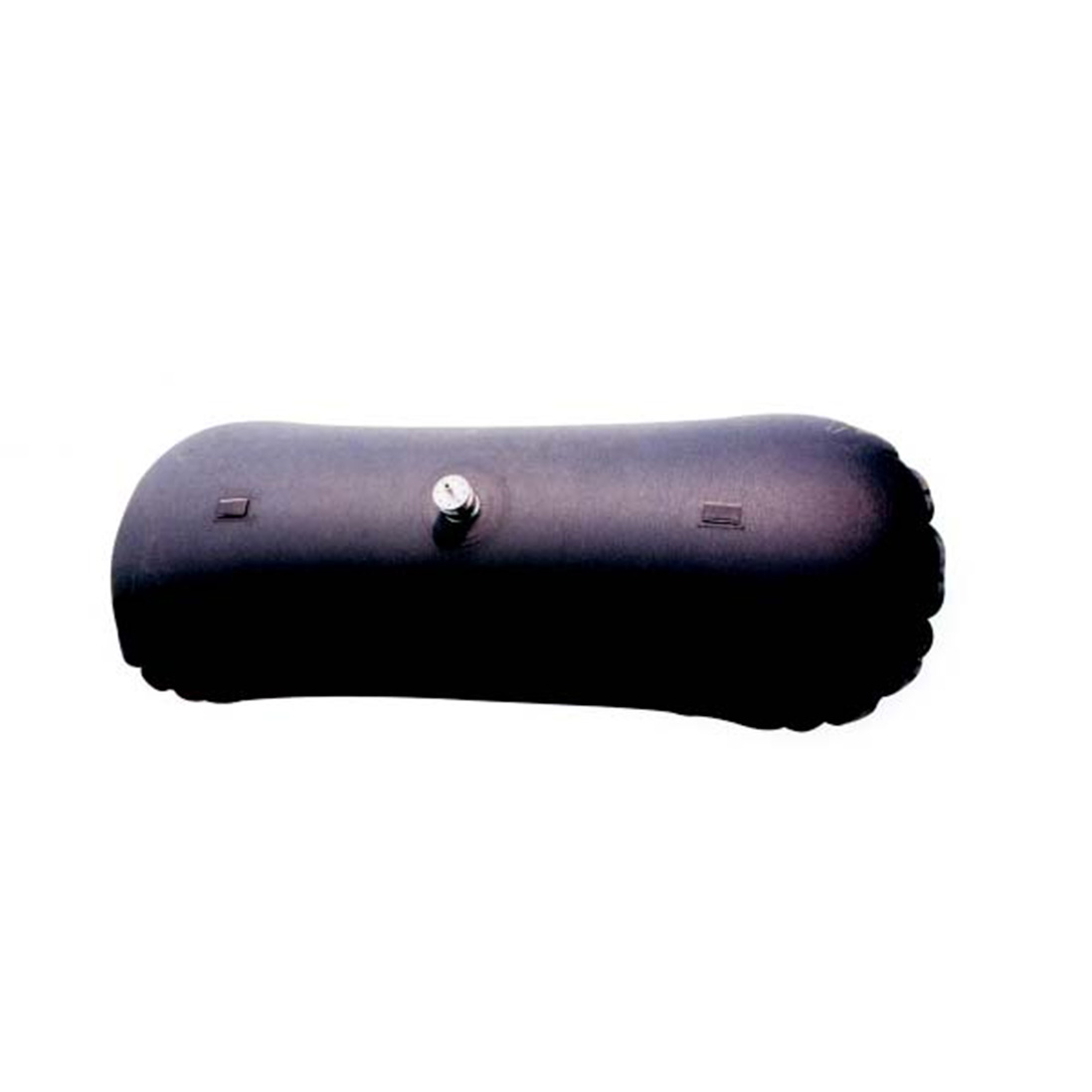

Rubber Capsule & Diaphragm  For Oil Tank of Transformer

According to different structures the products are classified as rubber capsule and rubber diaphragm.
Install and use on the basis of tank’s specifications.
Rubber capsule and rubber diaphragm should be stored in a warehouse under the temperatures 0~
28℃,relative humidity less that 80﹪and be avoided from lighting and be at least lm away from heat source.
They should be avoided from contacting with oils, acids, alkalis or other materials that do damage to rubber.
材质: Rubber
颜色: Black
产品详情
胶囊.jpga) Rubber capsule and rubber diaphragm may normally operate under temperatures -40to 95℃.
b) Physical characteristics
Aging coefficients (100℃×72h)≥0.8
Oil proof derivatives (95℃×24h)oil for transformer ≥0.8
Brittleness temperature mot higher than -40℃
c) Performances of adhesive tape
Pull apart mightiness of adhesive tape≥23.52KN/m
Oil biffusion (60℃ oil for transformer)≤10g/㎡•24h
