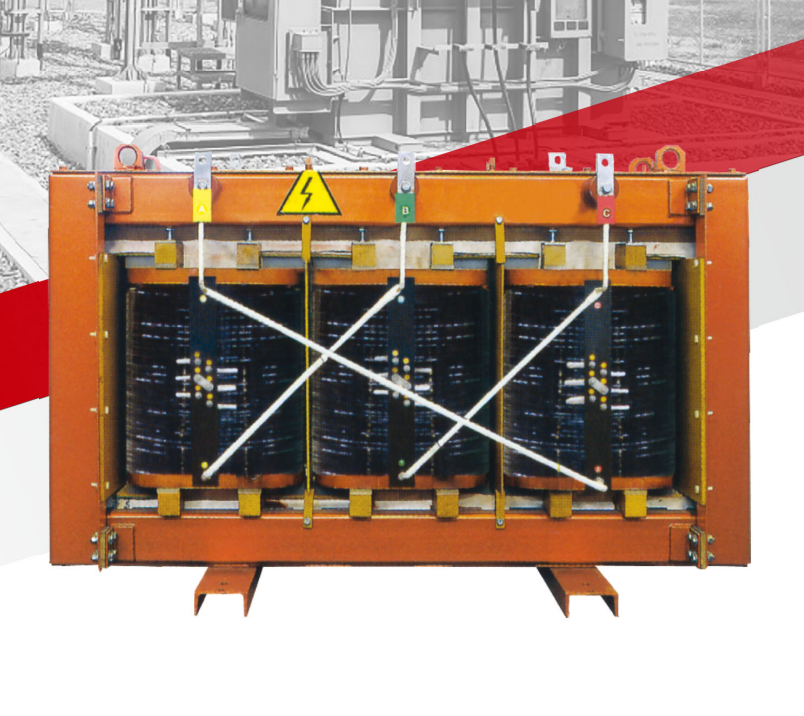

10kV Grade SGBH15 Series Amorphous Alloy Resin Insulated Dry-type Transforme
Scope of application
10kV SGBH10 series amorphous alloy resin insulated dry-type transformer no-load loss than GBT10228 Table 4 group reduce 75%, load loss GB/T10228 Table 4 reduce 15%, is the most advanced energy-saving dry-type transformer. Dry-type transformers are oil-free, without the risk of combustion, installed indoors, and can go deep into the load center to meet the needs of high-density modern urban development. 10KV SGBH10 series amorphous alloy resin insulated dry type transformer has the advantages of low no-load loss, no oil, flame retardant self-extinguishing, moisture resistance, crack resistance and maintenance free. Any place that now uses ordinary drying can be replaced by amorphous drying, which can be used in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises and power plants. It is especially suitable for installation and use in places with high fire protection requirements such as flammable and explosive.
Structural characteristics
The low-voltage box coil of this product is wound by copper box, the high-voltage wire is wound by medical H-grade high-strength enamelled wire, and the glass fiber reinforced epoxy resin encapsulation structure has excellent moisture resistance and crack resistance. The core is made of amorphous alloy strip, with a short section, four frames and five columns.
