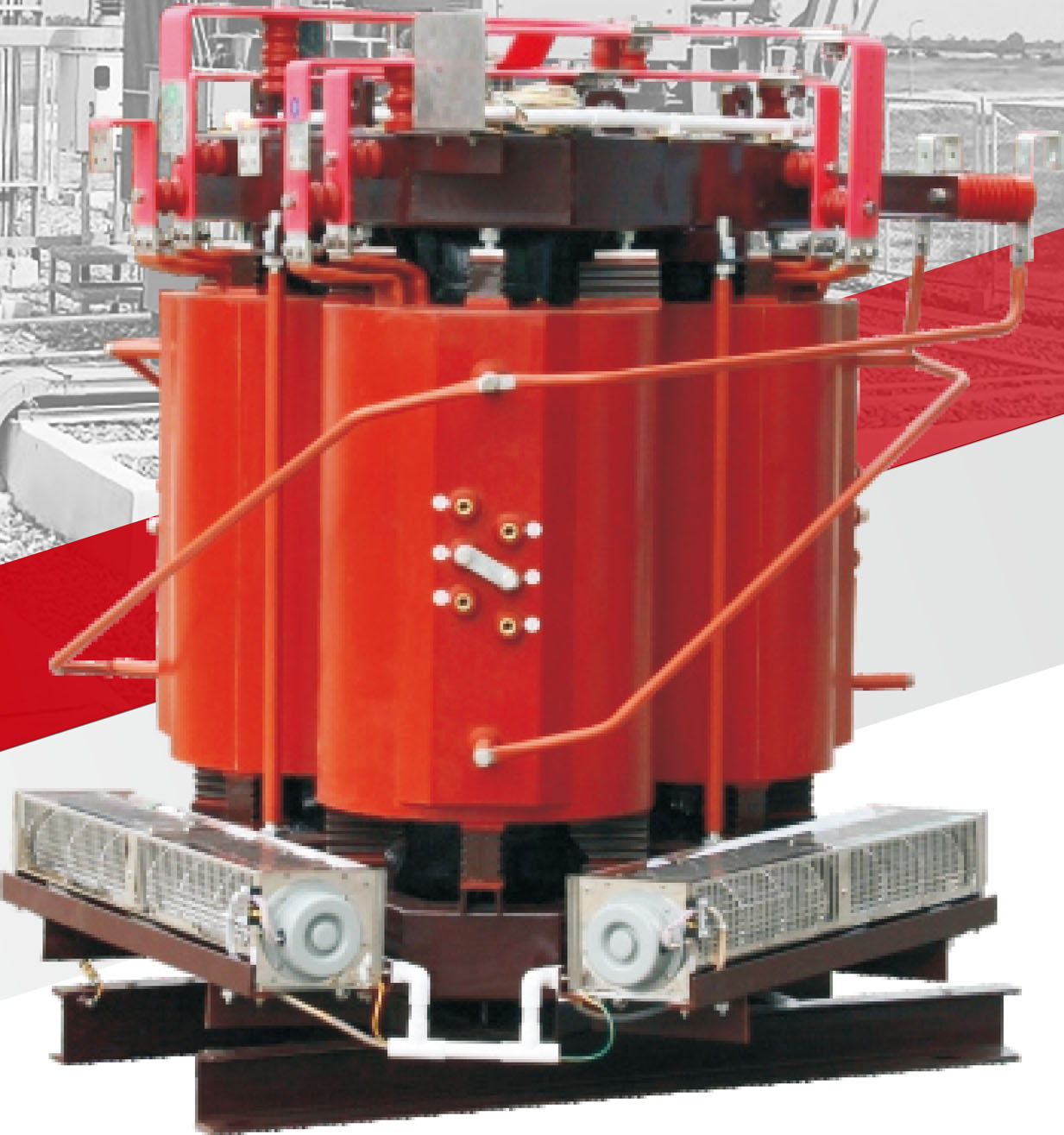

SC(R)B-11,12,13,14,18 Series StereoWound CoreResin Insulated Dry Type Transformer
Main technical parameters
The three-dimensional triangular coil core has no seam, that is, there is no high energy consumption area, which can give full play to the characteristics of high magnetic permeability of high-quality iron heartwood and minimize the loss caused by the air gap formed at the joint.
miniaturization
High space utilization coefficient, the transformer adopts triangular structure, so the volume is smaller than the conventional transformer, compact structure, beautiful appearance, small footprint.
Low noise
Since the three-dimensional triangular coil core is made of several trapezoidal material belts in turn, the silicon steel strip is tightly wound, the magnetic direction of the silicon steel strip is completely consistent with the magnetic circuit direction of the core, and the vibration is small when working, which can solve the sound of the stacked core due to the magnetic circuit incoherence, and the noise can be reduced to a minimum.
Structural characteristics
Coated with thin layer epoxy resin.
It has the advantages of flame retardant, self-extinguishing, moisture proof, good heat dissipation and so on.
Can penetrate the load center.
High mechanical strength, strong short-circuit resistance.
Normal service condition
Temperature: Extreme maximum temperature :40°, extreme minimum temperature :-5C.
The altitude does not exceed 1000m.
Installation conditions: indoor.
Note: Out of range or have special requirements can be customized according to requirements, order need to be explained separately.
Order instructions
When ordering, the product model, rated capacity, high and low voltage rated voltage, high pressure by range, phase number, frequency, connection group label, etc.
