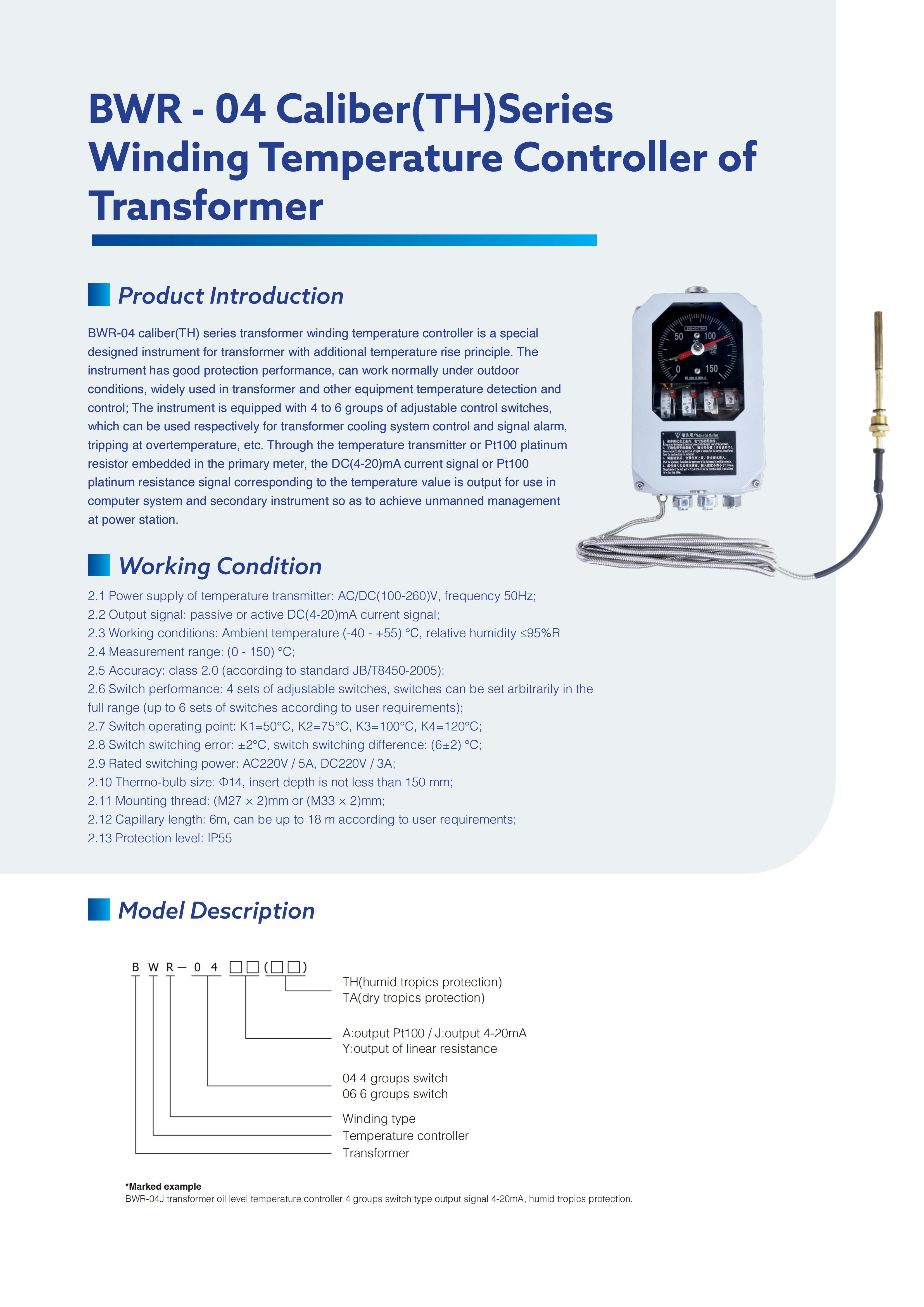

BWR - 04 Caliber(TH)Series

BWR-04 caliber(TH) series transformer winding temperature controller is a special
designed instrument for transformer with additional temperature rise principle. The
instrument has good protection performance, can work normally under outdoor
conditions, widely used in transformer and other equipment temperature detection and
control; The instrument is equipped with 4 to 6 groups of adjustable control switches,
which can be used respectively for transformer cooling system control and signal alarm, tripping at overtemperature, etc. Through the temperature transmitter or Pt100 platinum resistor embedded in the primary meter, the DC(4-20)mA current signal or Pt100
platinum resistance signal corresponding to the temperature value is output for use in
computer system and secondary instrument so as to achieve unmanned management
at power station.
